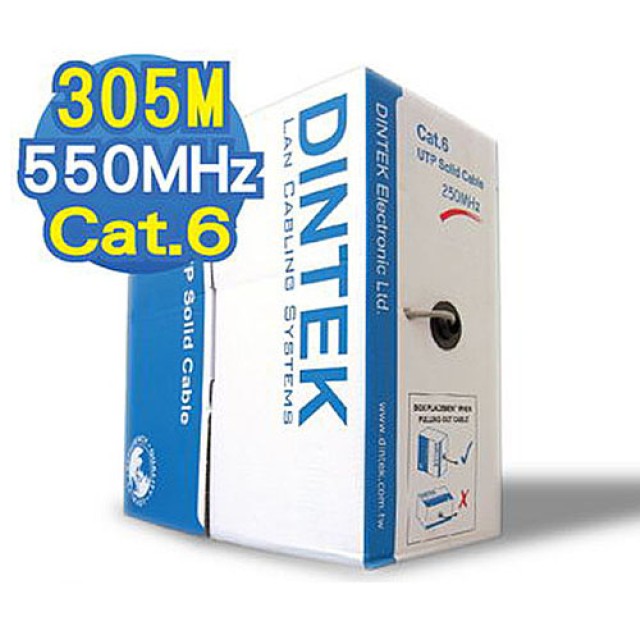

DINTEK Cat 6 UTP Solid Cable 305m
- Brand: DINTEK
- Model: 1101-04004
- Location: Malaysia
- Reward Points: 529
- Availability: In Stock
-
RM 529.00
- Redeem Points: 52900
-
- 6 or more RM 523.71
- 12 or more RM 518.47
- 24 or more RM 513.28
- 48 or more RM 508.15
Available Options
Cat 6 4 Pair UTP 23AWG Solid Cable 305m/box
Conductor : 23AWG Bare Solid Copper
Jacket : PVC
Color : Blue/Gray/Red/Yellow
Application:
- Voice
- ISDN
- 10Base T(IEEE 802.3)
- Fast Ethernet(IEEE802.3)
- 100Vg-AnyLAN(IEEE 802.12)
- Token Ring(IEEE 802.5)
- TP-PMD(ANSI X3T9.5)
- 100Base-T Ethernet(IEEE 802.3u)
- 155/622 Mbps ATM
- 1000Base-T
- 550 MHz Broadband video
Product Electrical Characteristics:
- Impedance:100±15 ohms
- Resistance Unbalance 100m: 5% max.
- Mutual Capacitance, max. nf/ 100m: 5.6
- DC Resistance, max. ohms/100m: 9.38
- Capacitance Unbalance(Pair to Ground):330pf/ 100m max.
Cable Data:
- No. of Pairs:4
- Jacket Color:Gray
- Insulation Thickness: 0.22mm
- Nom.O.D.:6.5mm
- Flame Rating:CM
- Transmission quality verified up to 250MHz
Industry Standard:
- UL, ETL Verified
- TIA/EIA 568B.2-1
- ISO/IEC 11801
- EN 50173
| Order Processing | |
| Lead Time | 1~2 Working Days |
| Warranty | |
| Warranty Period | N/A |
